Principle:
Adopt Plc Control System To Automatically Mix One Or More Materials Of Different Products According To The Specified Weight Ratio. The System Realizes The Functions Of Material Measurement And Transmission, Batching Control, Management, Production Data Collection And Management.
Function:
Pulse Dust Collector: The Dust Removal System Can Effectively Solve The Problem Of Dust Flying During The Process Of Feeding And Unloading, So That The Production Site Environment Is Clean And Orderly. Automatic Alarm Reminder: When There Is No Material In The Hopper Or There Is No Material, The Alarm Will Sound Automatically, Which Effectively Solves The Problem Of Missing Key Raw Materials. Automatic Feeding Anti Bridging Function: This Machine Adopts Pneumatic Feeding, Precision For Some Small Materials With Viscosity: Error Less Than 5g (Per Bucket)
Small Material Management: Can Store 49 Kinds Of Small Material Ratios (For 5-6 Production Lines)
Confidentiality Function: The System Is Provided With Password Protection (To Prevent Leakage Of Small Material Ratio). The Administrator Has The Authority To Improve The Accuracy Of Ingredients, Reduce Labor Losses, Reduce Scrap, Increase Profits, And Facilitate Management
Advantages:
1. Easy Installation: The Whole System Is Composed Of Relatively Independent And Compact Small Hoppers. There Is A Cable Connection Between The Electric Control Box And The Hopper, Which Makes Installation Very Convenient And Occupies Very Little Space.
2. Easy Installation: The Whole System Is Composed Of Relatively Independent And Compact Small Bins. There Is A Cable Connection Between The Control Cabinet And The Bin, Which Is Very Convenient For Installation And Occupies Very Little Space.
3. Complete Functions: The System Does Not Need To Modify The Program, And Can Adapt To Different Requirements Only By Setting And Selecting Some Parameters On The Operation Panel.
4. High Reliability Design: Always Adhere To The Reliability Of Product Quality, So The Control System Adopts Siemens System Products With High Reliability.
5. High Accuracy: Advanced Weighing Modules And Advanced Design Concepts Are Selected To Meet The Accuracy Of Users.
6. Speed Regulation: Automatically Adjust The Discharging Speed According To The Weight Of Small And Medium Materials In The Proportion. This Machine Is Equipped With A High-Power Feeding Motor, Which Makes The Whole Batching Process Faster, More Stable And More Accurate.
7. Quality Assurance: The Products Selected By The System Have Passed The Technical Approval Of The Plastic Industry
8. Convenient Operation Method: Try To Use Graphics And Symbols To Describe The Operation Process, So That The Operation Interface Is More Friendly And Intuitive. The System Is Designed With Full Consideration Of Customers' Use Needs And Habits In The Design Scheme, So That You Can Bring Pleasure And Convenience To Your Work While Using New Products.

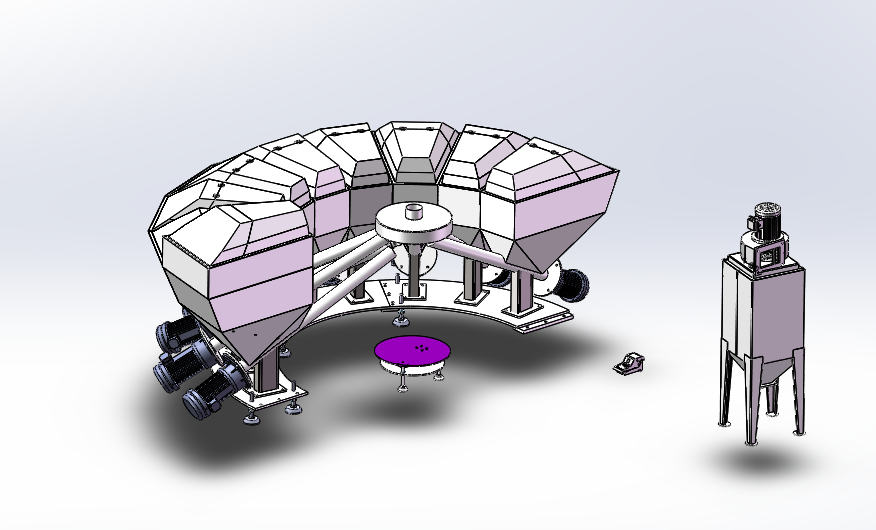

Automatic Metering And Batching Machine Is A Production Equipment Used For Automatic Batching Of Different Powder Auxiliary Materials According To A Certain Proportion In The Plastic Industry. The System Is Composed Of Five Parts: Main Machine, Fan And Pulse Dust Collector, Weighing Scale, Foot Switch And Electric Control Box.
Host: The Host Is Divided Into Five Buckets, Seven Buckets, Nine Buckets, Eleven Buckets, Twelve Buckets, Etc., Which Can Be Customized According To Needs. The Order Of Discharge Is From Left To Right.
Fan And Dust Removal: The Fan Is Equipped With 220v180w; The Working Voltage Of Pulse Dust Removal Is Dc 24v.
Platform Weighing: Platform Weighing Is The Core Component Of The Equipment. Generally, The Weight Of Heavy Objects Should Not Be Greater Than 32kg, Otherwise The Sensor Will Fail.
Foot Switch: It Is The Start Control Of Automatic Batching. You Can Lift It By Stepping On It Instead Of Stepping On It All The Time.
Electric Control Box: Aviation Plug Is Used For External Lead To Equipment, Which Is Convenient For Field Installation.
Automatic Batching Startup Method:
1. Press The Foot Switch Once.
2. Press Auto Start On The Monitoring Page. Start Batching. The Light Column Changes From Red To Green. At The Same Time, The Yellow Alarm Sound Is Turned On For 1 Second. Batching Is Performed Once In The Order From Left To Right. If There Is No Material In The Hopper Of A Material Or There Is No Material, The Yellow Light Flashes And The Alarm Sounds. The Alarm And Sound Will Not End Until The Material Is Discharged From The Current Station. After The Batching Is Completed, The Light Column Changes From Green Light To Red Light, And The Yellow Light And Sound Are Turned On For 1 Second. The Batching Is Completed Once. After The Batching, Take Down The Weighed Materials From The Weighing Platform And Place Them In The Empty Container. Mix Again.
